超細干粉滅火裝置的特點優點與安裝維護！
來源：http://www.xintli.net/ 日期：2023-06-19

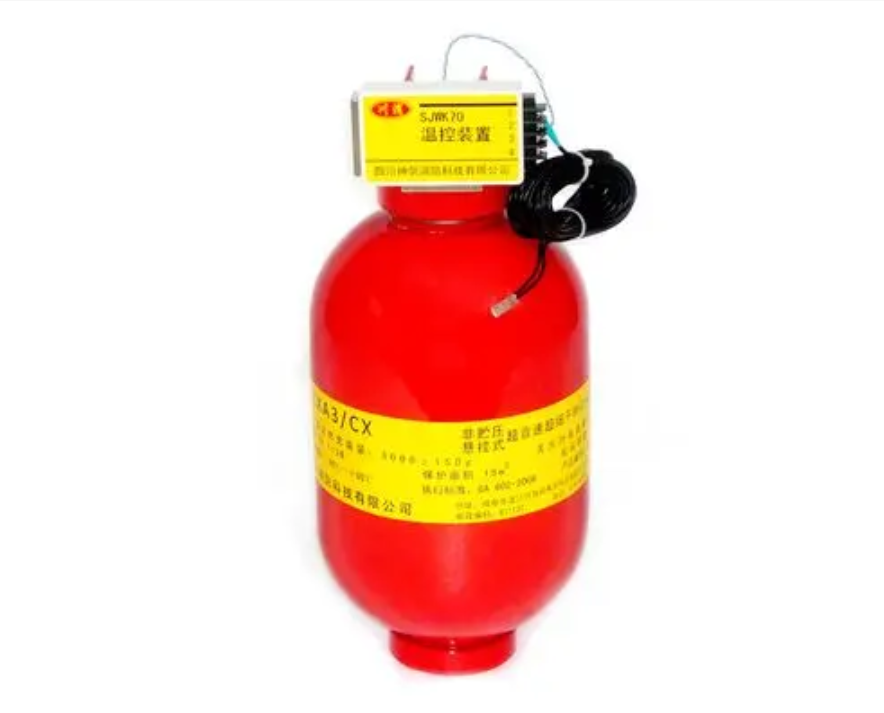

The characteristics of Chuanxiao ultrafine dry powder fire extinguishing device:
超細干粉滅火裝置是以超細干粉作為滅火劑的一種滅火裝置，超細干粉滅火劑以多種無機物聚合而成的復合材料為主要成分，相比普通干粉滅火劑粒徑小、表面積大，具有滅火效率高，不吸潮，不結塊，對保護物不造成任何影響，既可全淹沒應用滅火，又可局部應用滅火。此外，超細干粉滅火劑對大氣臭氧層耗減潛能值（ODP）為零，溫室效應潛能值(GWP)為零，對人體皮膚和呼吸道無刺激，對保護物無腐蝕，無害。
Ultrafine dry powder fire extinguishing device is a type of fire extinguishing device that uses ultra-fine dry powder as the extinguishing agent. The main component of the ultra-fine dry powder fire extinguishing agent is a composite material formed by the polymerization of various inorganic substances. Compared with ordinary dry powder fire extinguishing agents, the particle size is small, the surface area is large, and the fire extinguishing efficiency is high. It does not absorb moisture, does not agglomerate, and does not cause any impact on the protective object. It can be used for both total flooding and local application for fire extinguishing. In addition, ultrafine dry powder fire extinguishing agents have zero ozone depletion potential (ODP) and zero greenhouse effect potential (GWP) in the atmosphere. They are non irritating to human skin and respiratory tract, non corrosive to protective materials, and non-toxic and harmless.
超細干粉滅火裝置的優點：
Advantages of ultrafine dry powder fire extinguishing devices:
1.滅火的有效性強
1. Strong effectiveness of fire extinguishing
2.系統簡單、成本低
2. Simple system and low cost
3.滅火劑用量小、滅火費用低
3. Low dosage of extinguishing agent and low firefighting cost
超細干粉滅火裝置的安裝：
Installation of ultrafine dry powder fire extinguishing device:
1.支架式安裝
1. Bracket installation
用2個膨脹螺釘(M10) 將固定支架固定在保護區上方的混凝預制板上，將滅火裝置上部吊環座旋入固定板下方的螺桿（M12），深度不小于15mm，裝置安裝應牢固，得松動。啟動模塊可以安裝在固定支架上。
Use two expansion screws (M10) to fix the fixed bracket on the concrete prefabricated plate above the protection area. Screw the upper lifting ring seat of the fire extinguishing device into the screw (M12) below the fixed plate, with a depth of no less than 15mm. The device should be installed firmly and not loose. The startup module can be installed on a fixed bracket.
2.吊環式安裝
2. Ring type installation
將1個帶鉤的膨脹螺釘（M12）固定在保護區上方的混凝預制板上，再將裝箱中吊環擰緊在滅火裝置上部，吊環鉤在膨脹螺釘彎鉤處，插上定位銷。啟動模塊可以掛在就近的墻壁或天花板上。
Fix one expansion screw (M12) with a hook onto the precast concrete slab above the protected area, and then tighten the lifting ring in the box onto the upper part of the fire extinguishing device. Hook the lifting ring onto the expansion screw hook and insert the positioning pin. The startup module can be hung on the nearby wall or ceiling.
需要注意的是，訂貨時應注明吊裝方式，無特別說明時默認是吊環安裝。
It should be noted that the lifting method should be specified when ordering, and if there is no special instruction, the default is to install the lifting ring.
超細干粉滅火裝置的維護：
Maintenance of ultrafine dry powder fire extinguishing equipment:
1.多長時間檢查一次？
How often is it checked?
使用單位應建立維護管理制度，由專人負責定期檢查。建議每6個月少對滅火裝置進行一次檢查。滅火裝置一經開啟或發現壓力指示器指針指向紅色區域時，必須重新再充裝。每12個月應進行一次檢查，包括相關聯動系統。必要時，取下滅火裝置，檢查滅火劑是否有結塊現象，如果有，應該重新充裝。
The user unit should establish a maintenance and management system, with dedicated personnel responsible for regular inspections. It is recommended to inspect the fire extinguishing equipment at least once every 6 months. Once the fire extinguishing device is turned on or when the pressure indicator pointer points to the red area, it must be refilled. A comprehensive inspection should be conducted every 12 months, including relevant linkage systems. If necessary, remove the fire extinguishing device and check for any clumping of the extinguishing agent. If so, it should be refilled.
2.多久進行水壓測試？
How long will the water pressure test be conducted?
每次再充裝或每5年應對滅火劑粉罐進行水壓試驗。水壓試驗不合格不允許再使用。次的檢測之后，以后每2年進行一次水壓測試，3.再充裝注意事項再充裝時所用滅火劑必須是ABC超細干粉滅火劑（GB578-2005）。另外，滅火裝置的維修必須由公安消防監督部門認可的廠進行。
Each refill or every 5 years, the fire extinguishing agent powder tank should undergo a hydraulic test. If the water pressure test fails, it is not allowed to be used again. After the first inspection, a water pressure test will be conducted every 2 years thereafter. 3. Precautions for refilling. The extinguishing agent used during refilling must be ABC ultrafine dry powder extinguishing agent (GB578-2005). In addition, the maintenance of fire extinguishing devices must be carried out by a professional factory recognized by the public security fire supervision department.
4.滅火裝置使用年限多久？
4. How long is the service life of the fire extinguishing device?
滅火裝置在正常情況下，使用有效期為5年。干粉滅火器的罐體強制報廢期為10年。一般的滅火器瓶壓有效期在1年半2年，并且要定期進行充壓或者更換。
Under normal circumstances, the fire extinguishing device has a validity period of 5 years. The mandatory scrapping period for dry powder fire extinguishers is 10 years. The validity period of a typical fire extinguisher bottle is 1 and a half to 2 years, and it needs to be regularly pressurized or replaced.
That's all for the characteristics, advantages, and installation and maintenance related matters of ultrafine dry powder fire extinguishing devices. We hope to provide you with good help. For more information, please come to our website http://www.xintli.net Consult and take a look!
