消防水泵閥門設置的6點操作
來源：http://www.xintli.net/ 日期：2022-12-20
消防水泵在消防給水系統中的作用相當于人的心臟，是所有水系統的動力所在，故消防水泵相關知識一定要認真掌握，做到靈活運用。下面
川消小編就來為您講解下消防水泵閥門設置的6點操作。
The role of fire pump in fire water supply system is equivalent to human heart, and it is the power of all water systems. Therefore, relevant knowledge of fire pump must be carefully mastered and flexibly used. Next, Sichuan Xiaobian will explain the six point operation of fire pump valve setting.

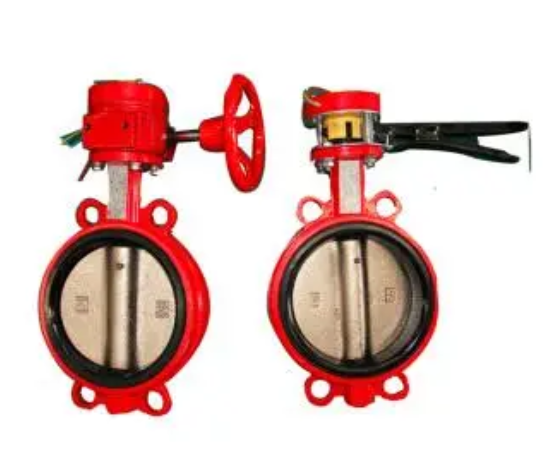

1、消防水泵的吸水管上應設置明桿閘閥或帶自鎖裝置的蝶閥，但當設置暗桿閥門時應設有開啟刻度和標志；當管徑超過DN300時，宜設置電動閥門；
1. The rising stem gate valve or butterfly valve with self-locking device shall be set on the suction pipe of the fire pump, but the opening scale and sign shall be set when the non rising stem valve is set; When the pipe diameter exceeds DN300, electric valve should be set;
2、消防水泵的出水管上應設止回閥、明桿閘閥或帶自鎖裝置的蝶閥，但當設置暗桿閥門時應設有開啟刻度和標志；當管徑大于DN300時，宜設置電動閥門；
2. Check valve, rising stem gate valve or butterfly valve with self-locking device shall be set on the outlet pipe of the fire pump, but the opening scale and sign shall be set when the non rising stem valve is set; When the pipe diameter is greater than DN300, electric valve should be set;
3、消防水泵吸（出）水管水平段，變徑連接時，應采用偏心異徑管管頂平接；
3. For the horizontal section of the fire pump suction (outlet) pipe, the eccentric reducer pipe top shall be used for parallel connection;
4、過濾器的過水面積應大于管道過水面積的4倍，且孔徑大于等于3mm；
4. The discharge area of the filter shall be 4 times greater than the discharge area of the pipe, and the aperture shall be no less than 3mm;
5、消火栓給水系統與自動噴水滅火系統宜分別設置消防水泵，當與消火栓系統合用消防水泵時，系統管道應在報警閥前分開；
5. The fire pump should be set for the fire hydrant water supply system and the automatic sprinkler system respectively. When the fire pump is shared with the fire hydrant system, the system pipe should be separated in front of the alarm valve;
6、消防水泵吸水管的直徑小于DN250時，其流速宜為1.0m/s～1.2m/s；直徑大于DN250時，宜為1.2m/s～1.6m/s；
6. When the diameter of the fire pump suction pipe is less than DN250, the flow rate should be 1.0m/s-1.2m/s; When the diameter is greater than DN250, it should be 1.2m/s ～ 1.6m/s;
